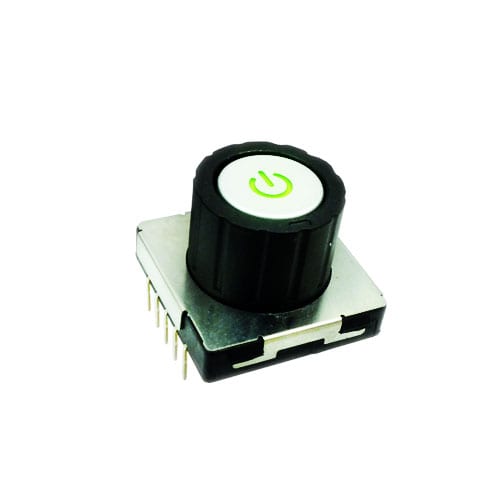

Rotary Switch with centre push button, equipped with full LED illumination. Custom legends available, such as power symbol.
Key Features:
| Product Series | |
|---|---|
| Function | |
| Illumination | |
| Multi-Colour LED Options | |
| Single LED options |

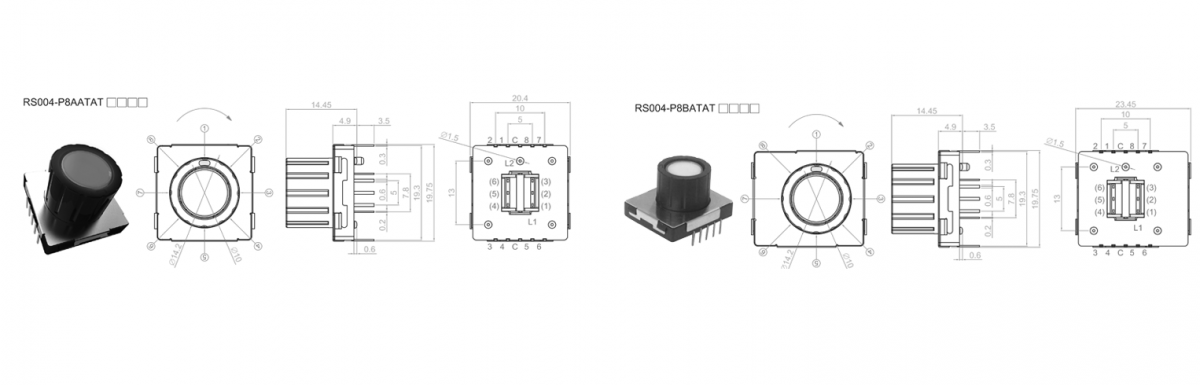

RS004 specifications
| Switch specifications | |
| Pole–position | ROTARY SWITCH: 1P8T
PUSH SWITCH: 1P2T or 2P2T |
| Contact rating | 30VDC, 0.1A/5VDC, 0.1mA |
| Contact resistance | 200mΩ MAX. 5V DC; 1mA; 100mA by method of voltage DROP |
| Insulation resistance | 100MΩ MIN. 100V DC for 1 minute |
| Dielectric strength | Breakdown is not allowable: 100V AC for 1 minute |
| Operating force | ROTARY SWITCH: 250 + 100gf cm
PUSH SWITCH: 250 + 100gf |
| Operating life | With movement click feeling: 10,000 cycles |
| Operating temperature range | -20°C~70°C |
| LED specifications | ||||||
| ATTENTION
LEDs are electrostatic sensitive devices |
Unit |
Value/LED colour | ||||
| Blue | Green | Red | White | Yellow | ||
| Forward current (lf) | mA | 10 | 20 | 20 | 2 | 20 |
| Reverse voltage (Vr) | V | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 |
| Reverse current (lr) | µA | 10 | 10 | 10 | 10 | 10 |
| Forward voltage@20mA (Vf) | V | @10mA
3.0-4.0 |
2.1-2.5 | 2.0-2.5 | @2mA 2.8-4.0 | 2.0-2.5 |
| Luminous intensity@20mA (lv) | mcd | @10mA 200 | 800 | 1800 | @2mA 12 | 1800 |
