| Function | |
|---|---|
| IP Rating | |
| Mechanical Operations | |
| Product Series | |
| Configuration |

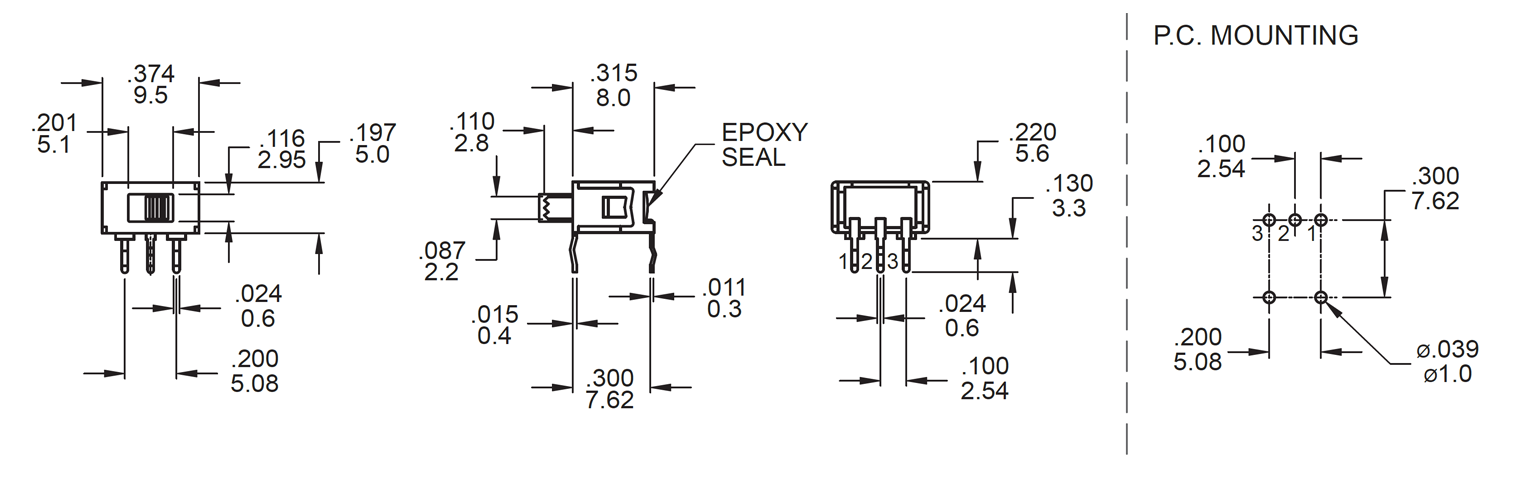

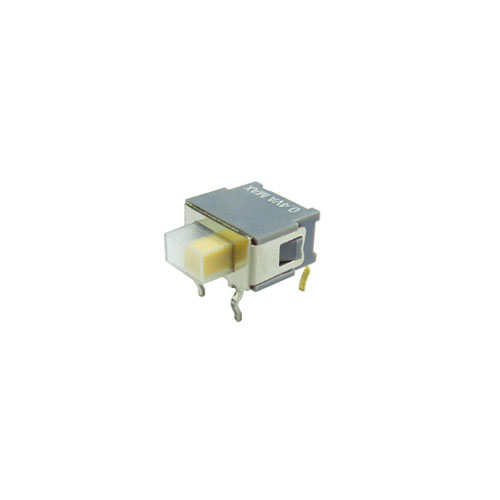

This PCB mount Sub-miniature Slide Switch features an SPDT configuration and an IP67 rating. It has a right angle thru-hole mounting and is available with 2 or 3 positions.
Key Features:
| Function | |
|---|---|
| IP Rating | |
| Mechanical Operations | |
| Product Series | |
| Configuration |

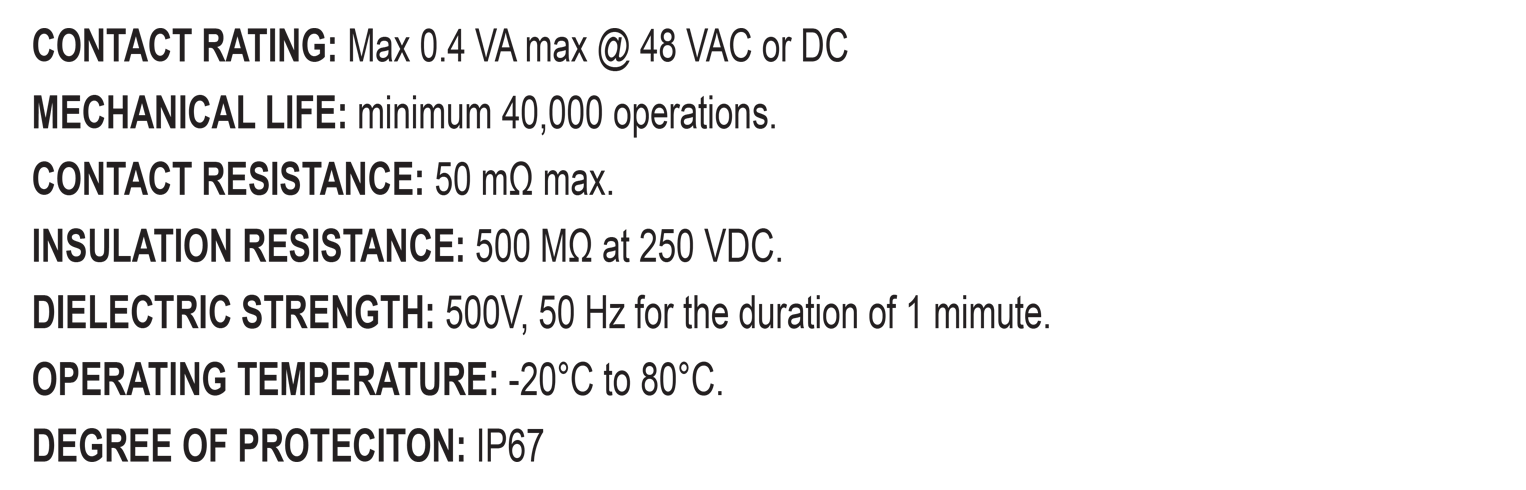

| Contact rating | Max 0.4 VA max @ 48 VAC or DC |
| Mechanical life | minimum 40,000 operations |
| Contact resistance | 50 mΩ max. |
| Insulation resistance | 500 MΩ at 250 VDC. |
| Dielectric strength | 500V, 50 Hz for the duration of 1 minute |
| Operating temperature | -20°C to 80°C. |
| Degree of protection | IP67 |
