| Function | |
|---|---|
| IP Rating | |
| CONTACT RATING | *Dependent upon contact material |
| CONTACT RESISTANCE | 10 m Ω max. initial @ 2-4VDC |
| INSULATION RESISTANCE | 1,000 MΩ min. |
| DIELECTRIC STRENGTH: | 1,000 Vrms min.@sea level. |
| Mechanical Operations | |
| Product Series |

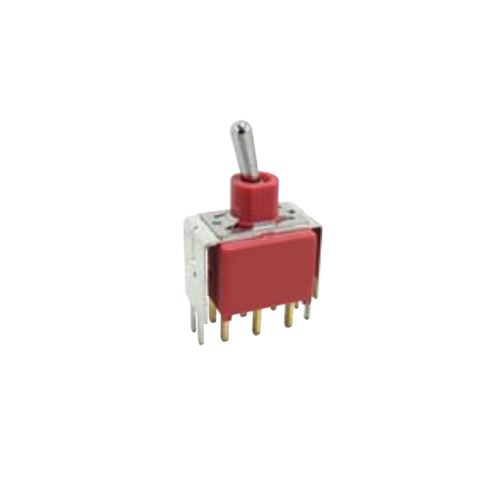

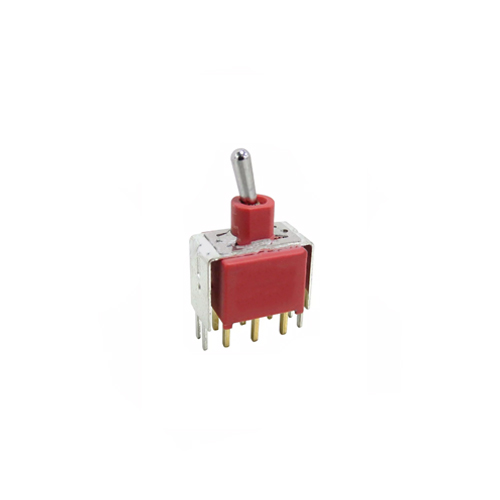

This Miniature PCB Toggle Switch has vertical bracket mounting with DPDT terminals. It is IP67 rated for resistance to water and dust and can have 2 or 3 positions.
Key Features:
| Function | |
|---|---|
| IP Rating | |
| CONTACT RATING | *Dependent upon contact material |
| CONTACT RESISTANCE | 10 m Ω max. initial @ 2-4VDC |
| INSULATION RESISTANCE | 1,000 MΩ min. |
| DIELECTRIC STRENGTH: | 1,000 Vrms min.@sea level. |
| Mechanical Operations | |
| Product Series |
