Toggle & Rocker Switch, RJS-1A-M1, Black/Grey, PCB, Panel mount, Toggle Switches, IP rated, without LED illumination, guards and accessories available. Miniature toggle switch, sealed waterproof toggle switch, sub-miniature toggle switches, ultraminiature toggle switches. Horizontal, right angle, vertical toggle switch. RJS Electronics Ltd.

RJS-1A-M1

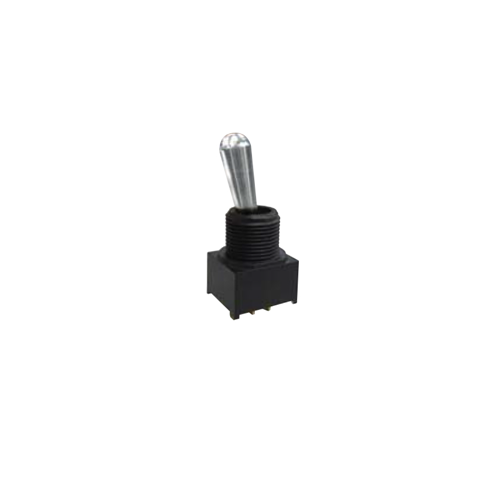

This Miniature PCB Toggle Switch has a vertical configuration and a black cap with an optional rubber sealing boot. It is IP67 rated for resistance to water and dust and has SPDT terminals.

Key Features:

  • Miniature PCB toggle switch
  • Vertical configuration
  • 2 position or 3 position
  • SPDT
  • Contact Rating up to 5A
  • IP67 rated
  • Full 1A Series
Data Sheet
IP Rating

Function

CONTACT RATING

*Dependent upon contact material
Mechanical Operations

CONTACT RESISTANCE

10 m Ω max. initial @ 2-4VDC
1 00mA for both silver and gold plated contacts
INSULATION RESISTANCE

1,000 MΩmin.
DIELECTRIC STRENGTH

1,000 Vrms min.@sea level.
OPERATING TEMPERATURE

-40°C to 85°C.
