TP6152TRL

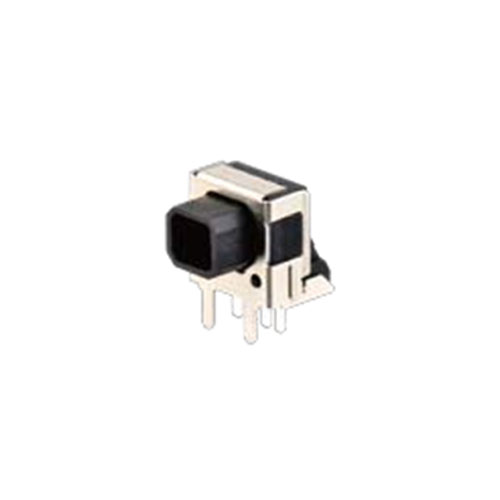

This PCB Tact Switch features LED illumination and a right-angle (side-actuated) function. It is designed without hook and with a standard snap-in type mounting.

Key Features:

  • Tact switch
  • LED illuminated
  • Without hook
  • Right angle
  • Snap-in mounting
  • Standard type
Product Series

Function

,

Orientation

Illumination

Single LED options

, , , , , , ,

Rating 50mA 12VDC
Insulation Resistance 100MΩ Min (at 500 VDC)
Dielectric Strength AC 250V (50/60 Hz for 1 minute)
Contact Resistance 100MΩ Max (Initial)
Electrical Life 100,000 Cycles Min
Ambient Temperature -25°C ~ +70°C
Operating Force 220 ± 50gf
Total Travel 0.25 ± 0.1mm

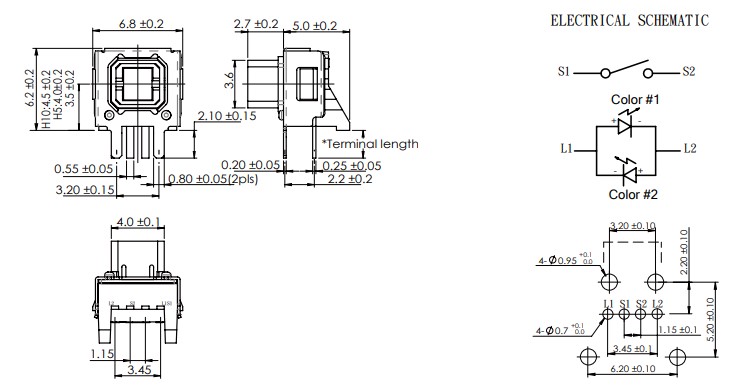

Drawing of TP6152TRL PCB LED illuminated tact switch, tactile switch, LED switches, RJS Electronics Ltd
