| Product Series | |
|---|---|
| Function | |
| Orientation | |
| Illumination | |
| Single LED options | Blue Green, Pure Green, Amber, Blue, Green, Red, White, Yellow |

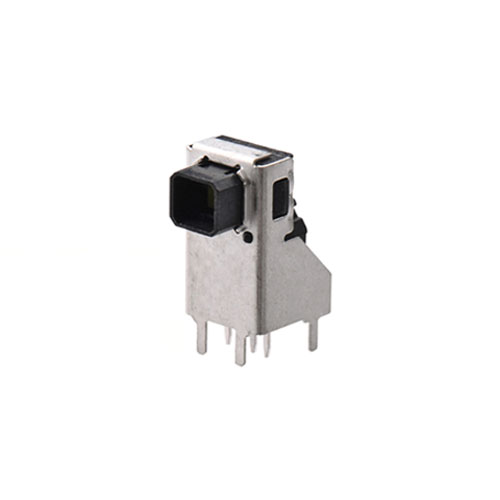

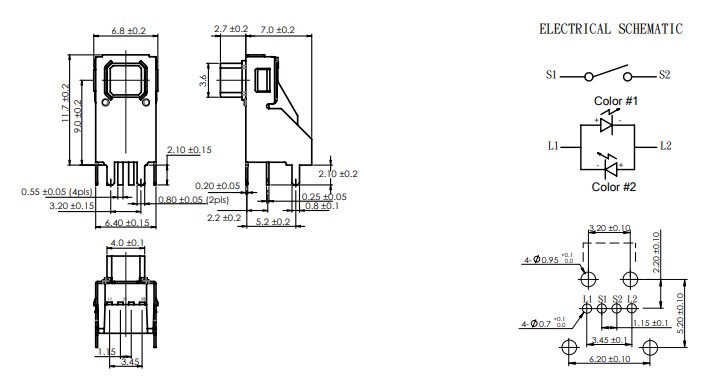

This PCB Tact Switch features a right-angle (side-actuated) function and a height of 11.7mm, with LED illumination. It is designed with snap-in type mounting and without hook.
Key Features:
| Product Series | |
|---|---|
| Function | |
| Orientation | |
| Illumination | |
| Single LED options | Blue Green, Pure Green, Amber, Blue, Green, Red, White, Yellow |
| Rating | 50mA 12VDC |
| Insulation Resistance | 100MΩ Min (at 500 VDC) |
| Dielectric Strength | AC 250V (50/60 Hz for 1 minute) |
| Contact Resistance | 100MΩ Max (Initial) |
| Electrical Life | 100,000 Cycles Min |
| Ambient Temperature | -25°C ~ +70°C |
| Operating Force | 220 ± 50gf |
| Total Travel | 0.25 ± 0.1mm |
