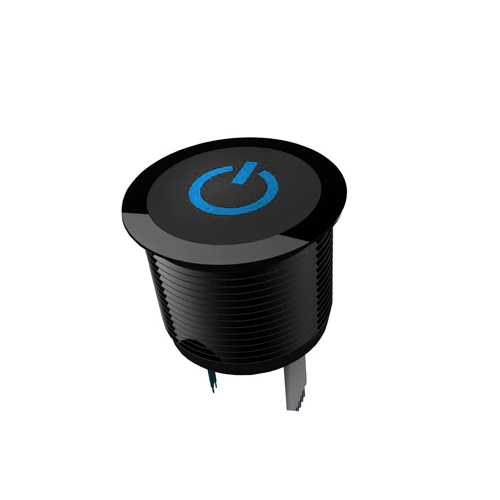

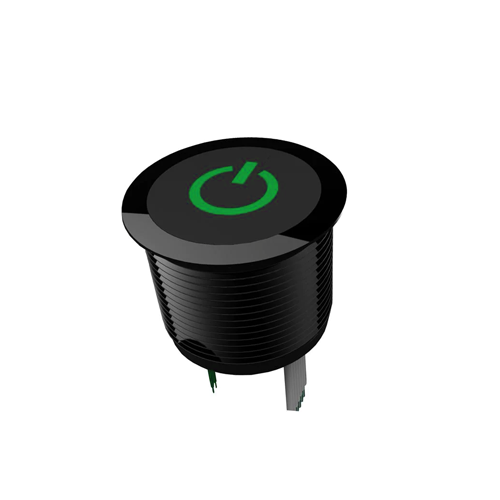

TS004

Metal LED Touch Sensor Switch with moisture and dust proofing. Available with full colour and RGB LED illumination.

Key Features:

  • Touch sensitive switch
  • LED illumination available, including RGB
  • 18pF, 20pF (standard) or 22pF sensitivity
  • Metal style
  • Moisture and dust proof

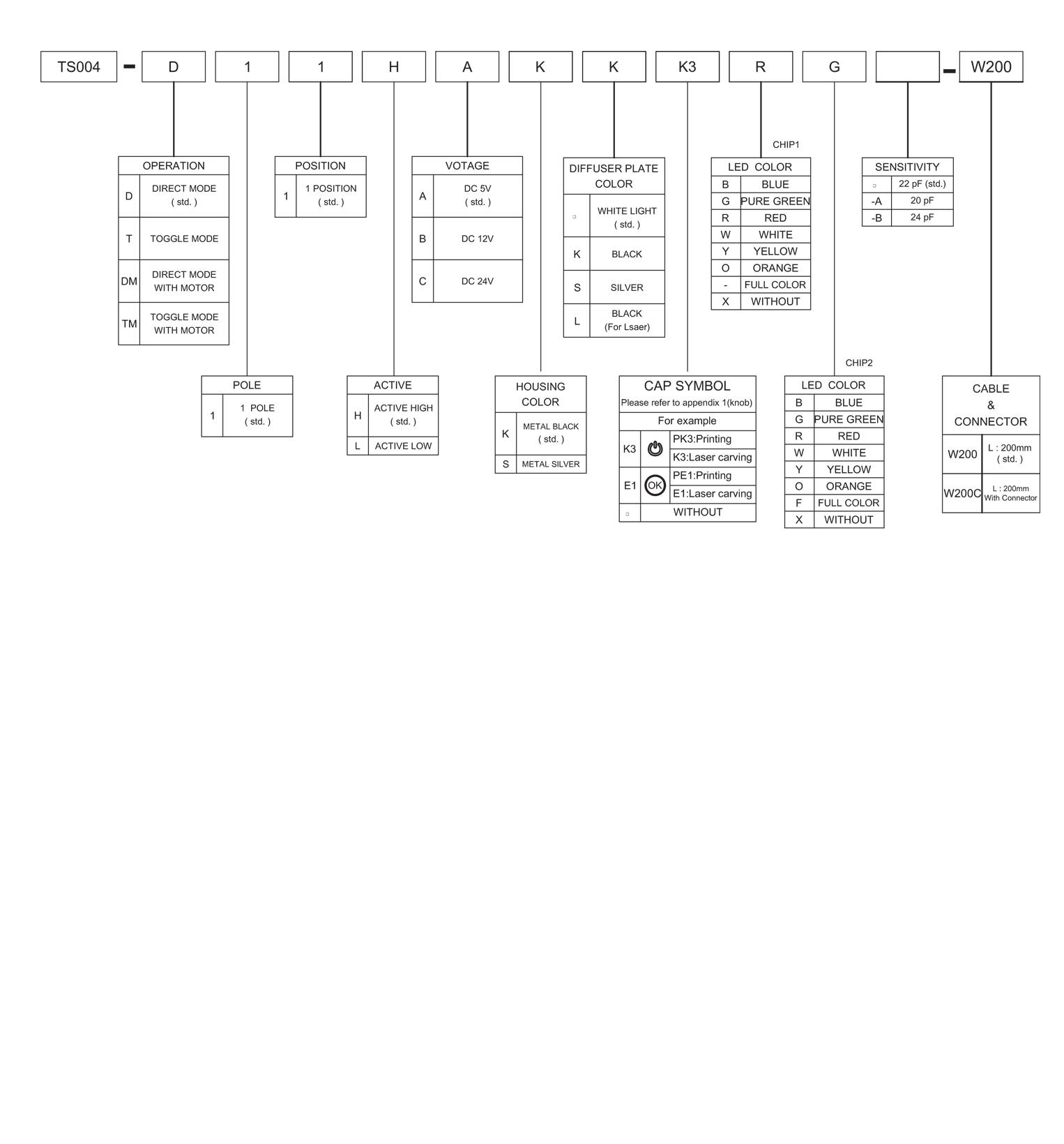

Product Series

Function

Illumination

Multi-Colour LED Options

Terminal Options

Housing Colour

Black metal
Silver Metal

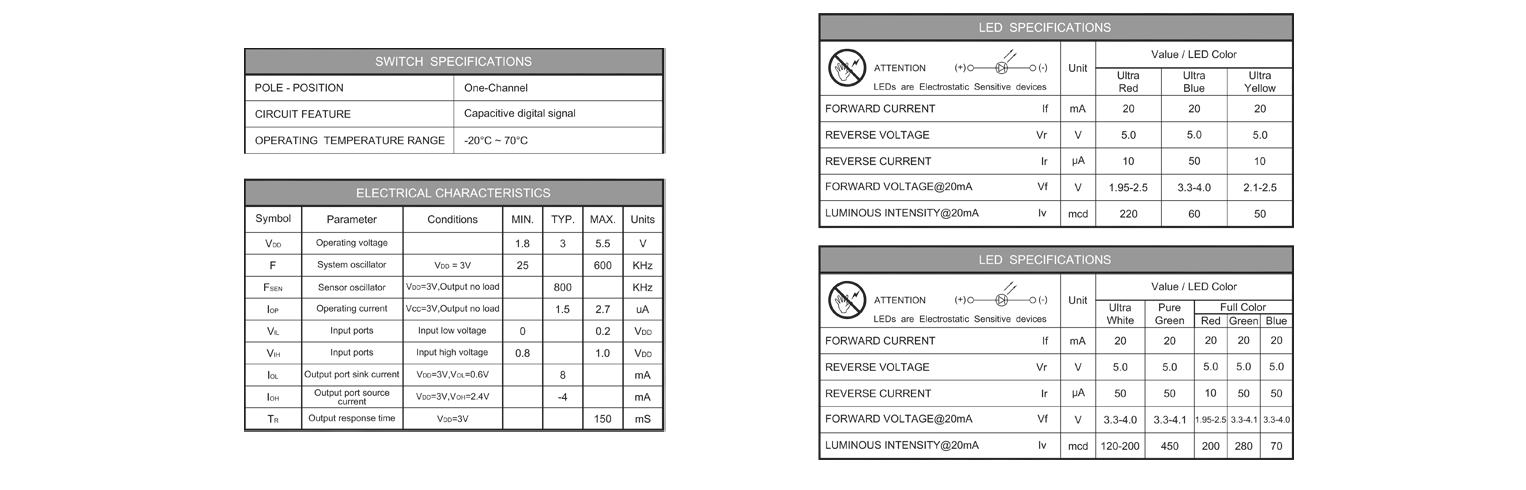

TS004 specifications

Switch specifications
Pole–position One-channel
Circuit feature Capacitive digital signal
Operating temperature range -20°C~70°C



LED specifications
ATTENTION

LEDs are electrostatic sensitive devices



Unit

Value/LED colour
Ultra red Ultra blue Ultra yellow Ultra white Pure green Full colour
 Red Green Blue
Forward current (lf) mA 20 20 20 20 20 20 20 20
Reverse voltage (Vr) V 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0
Reverse current (lr) µA 10 50 10 50 50 10 5. 50
Forward voltage@20mA (Vf) V 1.95-2.5 3.3-4.0 2.1-2.5 3.3-4.0 3.3-4.1 1.95-2.5 3.3-4.1 3.3-4.0
Luminous intensity@20mA (lv) mcd 220 60 50 120-200 450 200 280 70

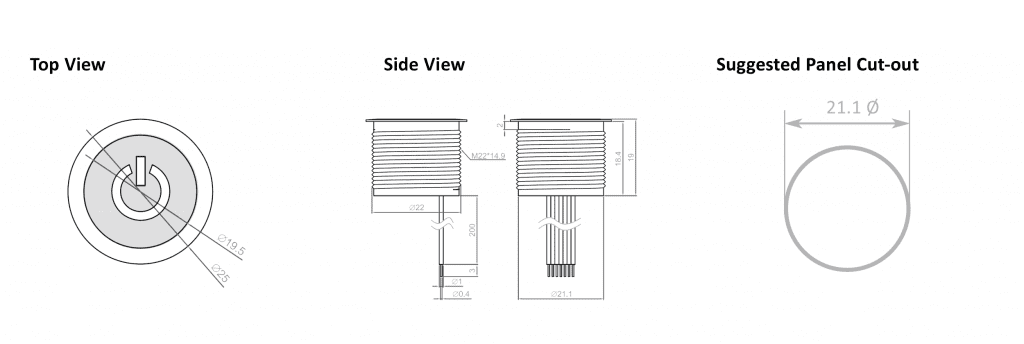

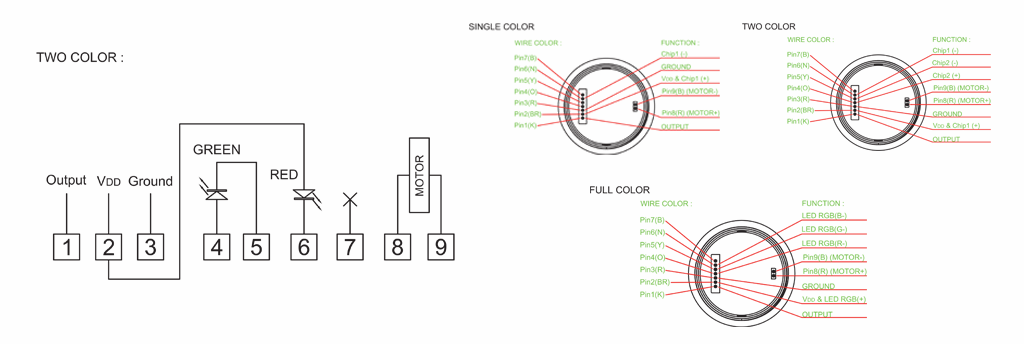

TS004 switch drawing, rjs electronics ltd
