TS006

LED Encoder, available with single or bi-colour LED illumination. 15 pulse scroller output, and one key centre output. VR: 15 position scroller output, and one key centre output.

Key Features:

  • Encoder
  • 15 pulse scroller output, and one key centre output
  • VR: 15 position scroller output, and one key centre output
  • Bi-colour LED illumination
  • IP67 (FRONT)
Product Series

Function

IP Rating

Single LED options

, , ,

Multi-Colour LED Options

TS006 specifications

Switch specifications
Pole–position Two-channel
Circuit feature Capacitive PWM signal
Operating temperature range -20°C~70°C



LED specifications
ATTENTION

LEDs are electrostatic sensitive devices



Unit

Value/LED colour
Blue Pure green Red Yellow Orange Green White
Luminous intensity@20mAlv mcd 150 1000 800 350 700 300 300-1500
Dominant wavelength λD nm 470 525 630 590 601 570 /
Forward voltage@20mAVf V 3.7 3.5 2 2.1 2.1 2.1 3.5

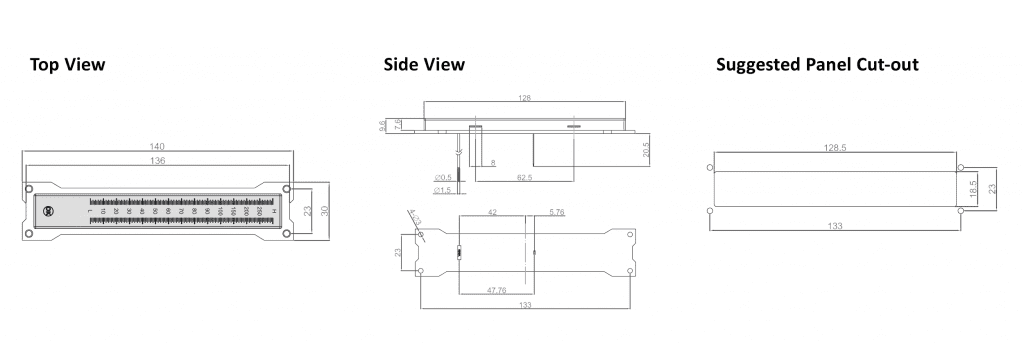

TS006 drawing, rjs electronics ltd
