VL6 LED Indicator Panel

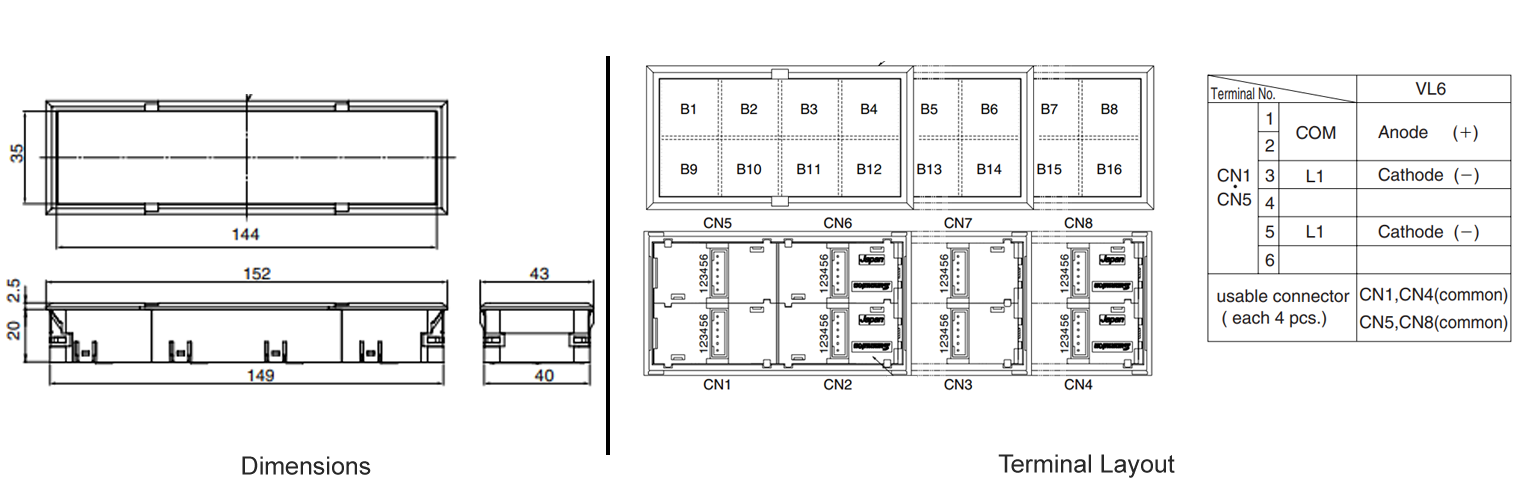

This 35mm x 144mm LED Indicator Panel features full-face LED illumination in a black or grey housing. It can be mounted horizontally or vertically in series with other indicators.

Key Features:

  • 35mm x 144mm rectangular
  • 20mm depth behind panel
  • Full-face LED illumination
  • 5V/12V/24V
  • Connector type
  • Full VL series

Data Sheet

Function

Illumination

Product Series

Single LED options

, , , ,

Depth (mm)

Terminal Options

VL LED Series specifications

Item Specifications
Insulation resistance More than 100MΩ at 500VDC
Dielectric strength 1500V AC RMS between terminals and ground (50/60Hz for 60 sec. at normal ambient temperature and humidity
Reverse dielectric strength 150V
Ambient temperature -10°~40°C
Ambient humidity 45~85%RH
