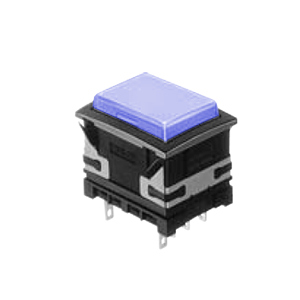

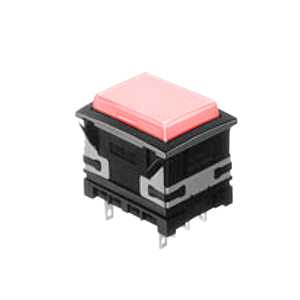

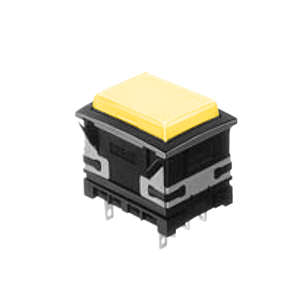

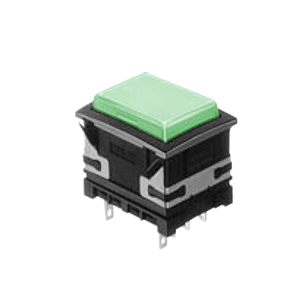

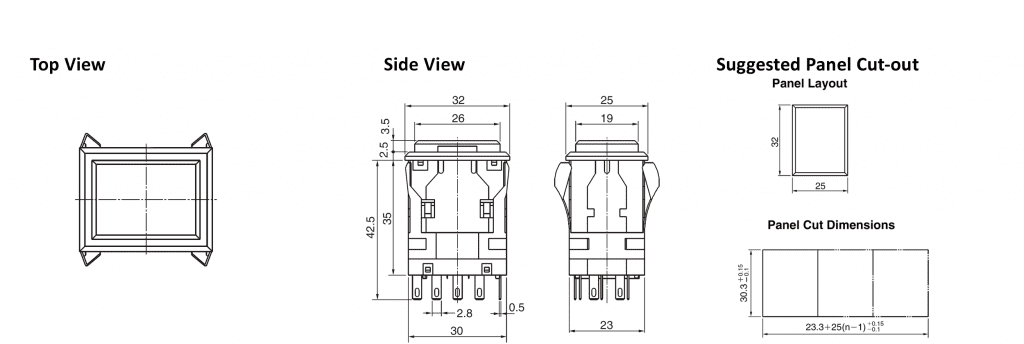

This Illuminated Push Button Switch features a rectangular plastic actuator with LED illumination. It is available with full-face, split-face or dual-colour illumination and a momentary or latching function.
Key Features:
| Function | Plastic Push Button Switch, Momentary Switch, Latching Switch |
|---|---|
| Depth (mm) | |
| Single LED options | |
| Multi-Colour LED Options | Blue/Green, (BB) Blue/Blue, (RB) Red/Blue, (RG) Red/Green, (RR) Red/Red, (RY) Red/Yellow |
| Switch Travel | |
| Product Series |
XH Series specifications
| Contact | Silver contact (gold-plated) | W/E Alloy #1 cross-bar contact |
| Electrical rating | AC125V, 250V 5A (resistive) | AC125V 0.1A, DC30V 0.1A (resistive) |
| Insulation resistance | More than 100MΩ at 500V DC | |
| Dielectric strength | 1 000V AC RMS between NC and NO terminal
2000V AC RMS between terminals and ground 50/60Hz for 60sec. at normal ambient temperature and humidity |
600V AC RMS between NC and NO terminal
2000V AC RMS between terminals and ground 50/60Hz for 60sec. at normal ambient temperature and humidity |
| Contact resistance | Less than 30mΩ (initial) at DC6V | Less than 50mΩ (initial) at DC6V 0.1A |
| Mechanical life | Momentary action: more than 1,000,000 operations
Alternate action: more than 200,000 operations |
|
| Electrical life | More than 50,000 operations at max. rated load | More than 100,000 operations at max. rated load |
| Ambient temperature | -15°C to +50°C | |
| Ambient humidity | 80% RH (max) | |
