LED Indicator Panel XL

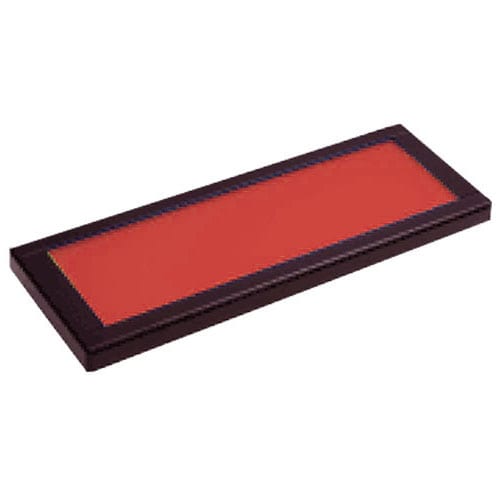

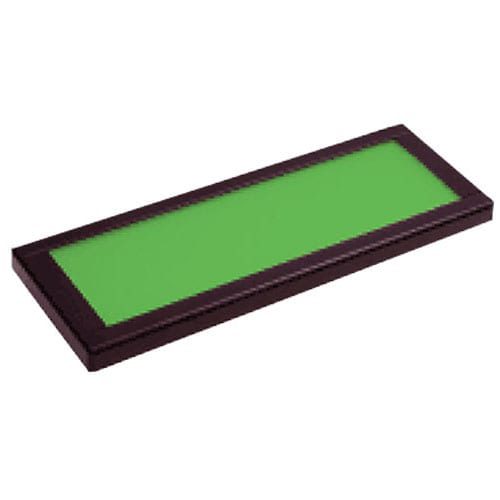

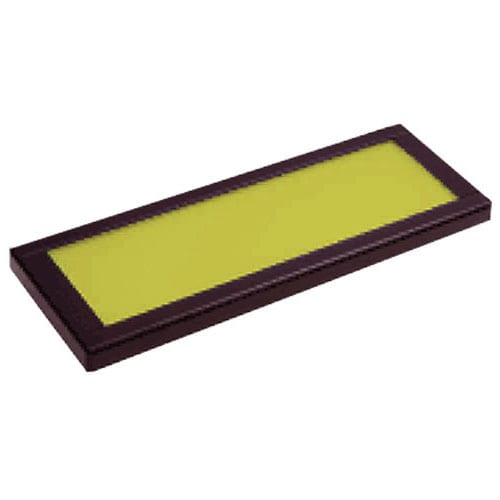

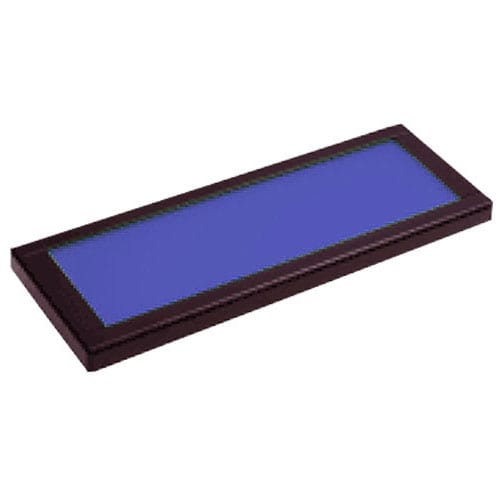

This extra large LED Indicator Panel features an 60mm x 210mm illumination size. It is available with single or bi-colour LED illumination and black or ivory housing.

Key Features:

  • 60mm x 210mm rectangular
  • 14mm thickness
  • Single/bi-colour LED illumination
  • 12V/24V
  • AC use available with AC adaptor
  • Full XL series
Function

Illumination

Single LED options

, , ,

Product Series

XL LED Series specifications

Item Specifications
Insulation resistance More than 100MΩ at 500VDC
Dielectric strength 1500V AC RMS between terminals and ground (50/60Hz for 60 sec. at normal ambient temperature and humidity
Reverse dielectric strength 150V
Ambient temperature -10°~40°C
Ambient humidity 45~85%RH

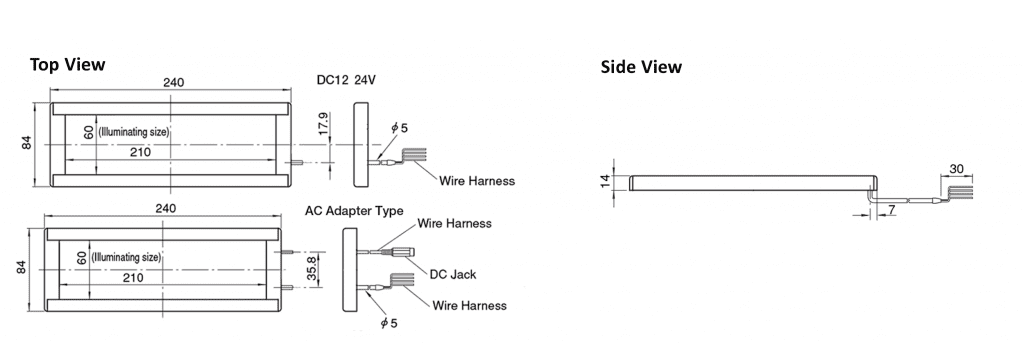

drawing for XL panel led indicator, rjs electronics ltd
